Clear Fold is a select distributor for Richards-Wilcox hardware. Since 1880, Richards-Wilcox has been the leading manufacturer of specialty hardware and door accessories for slide, swing, and slide-fold doors used in zoos, aquariums, barns, stables, contemporary buildings and historic buildings. Commercial, industrial, and residential settings nationwide feature Richards-Wilcox hardware products. For nearly 40 years, Clear Fold has been a leading distributor and solutions integrator of Richards Wilcox hardware.
- Competitive Pricing
- Same Day Shipping Available
- 10 Year Warranty
- Full Service Hardware Solutions

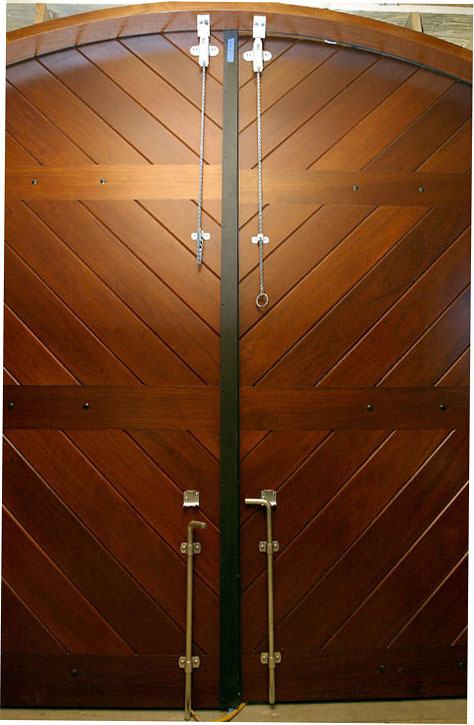

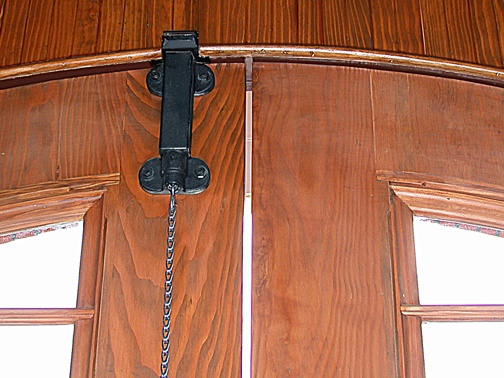

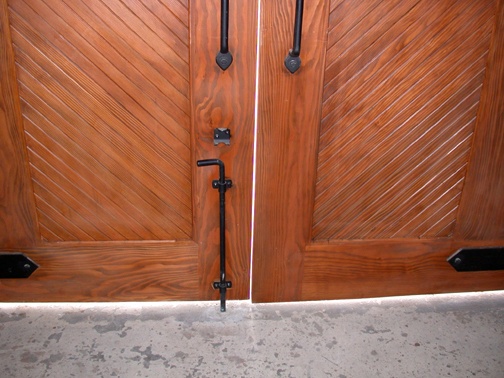

Decorative strap hinges, door pulls, bolts, latches, trucks, and track are available for slide, swing, and slide-fold doors weighing up to 5,000 pounds. Our design services enable architects to re-create unique door hardware for various applications including nationally and locally registered buildings.
- Slide, Swing, and Slide-Fold Door Hardware
- Decorative Strap Hinges
- Door Pulls
- Trucks and Track
- Traditional Steel with Black Iron Finish
- Oil-Rubbed Bronze
- Custom Powder Coat Finishes
- Lengths: 18″, 24″, 30″, and 36″
- Custom lengths available upon request
- Ball-bearing designs
- Disc-bearing designs
- Capacities up to 5,000 pounds
- Tulip Hinge
- Lancet Hinge
- Arrowhead Hinge
- Decorative Non-Load
- Bearing Strap Hinges
Multiple advantages over traditional door systems.

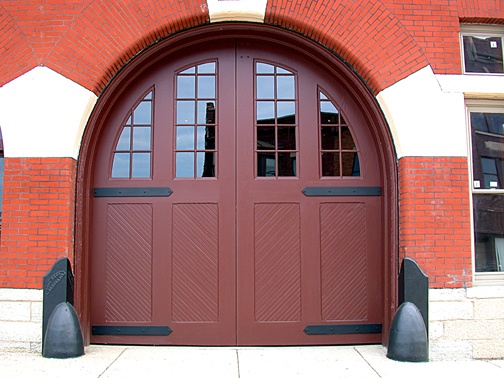

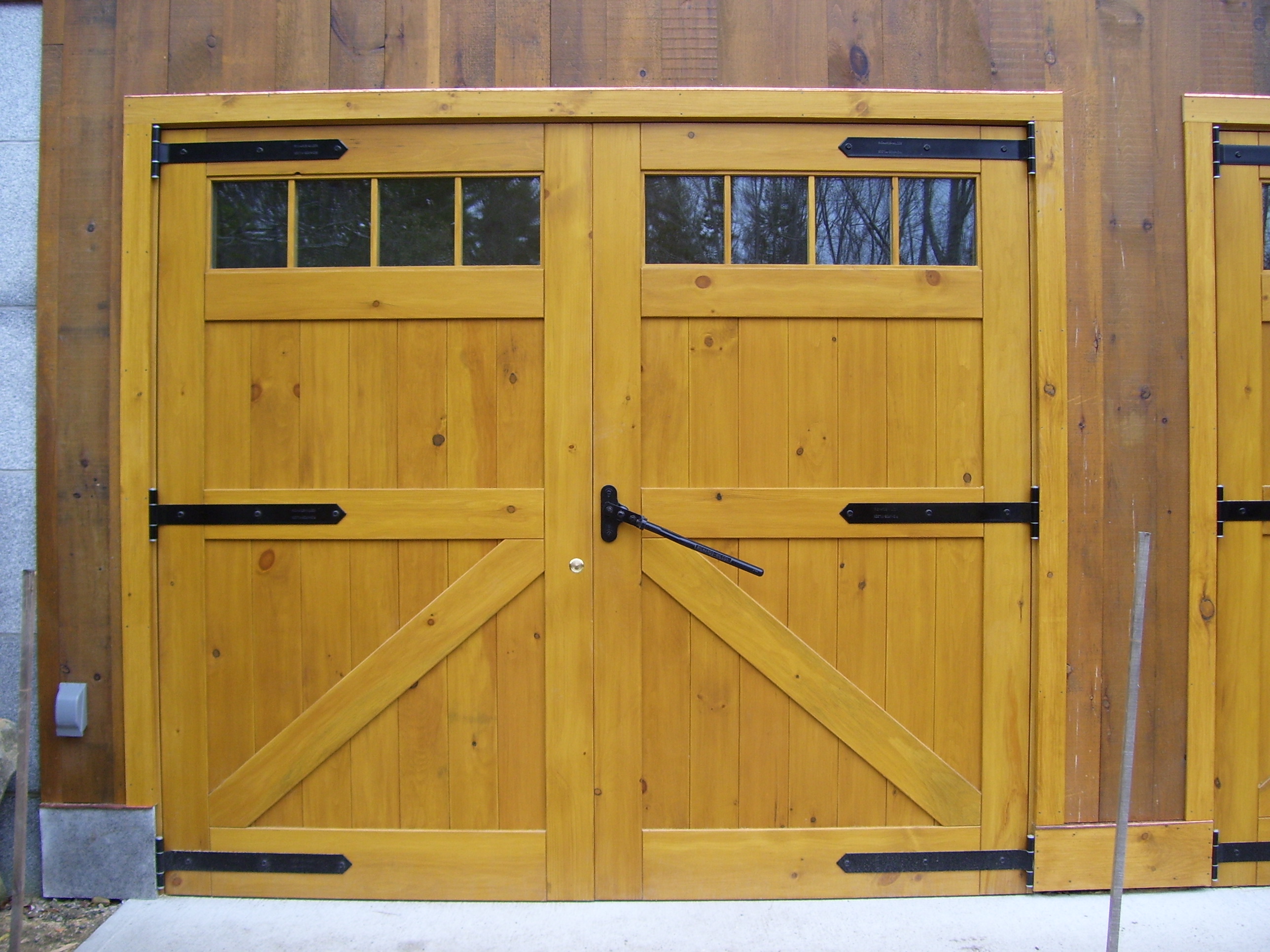

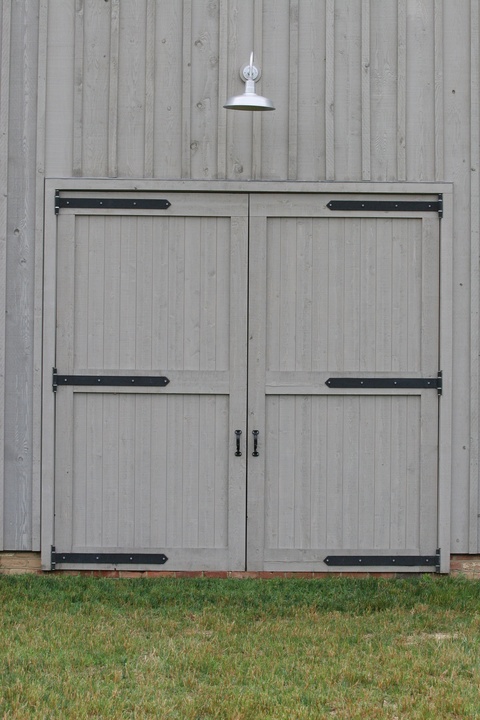

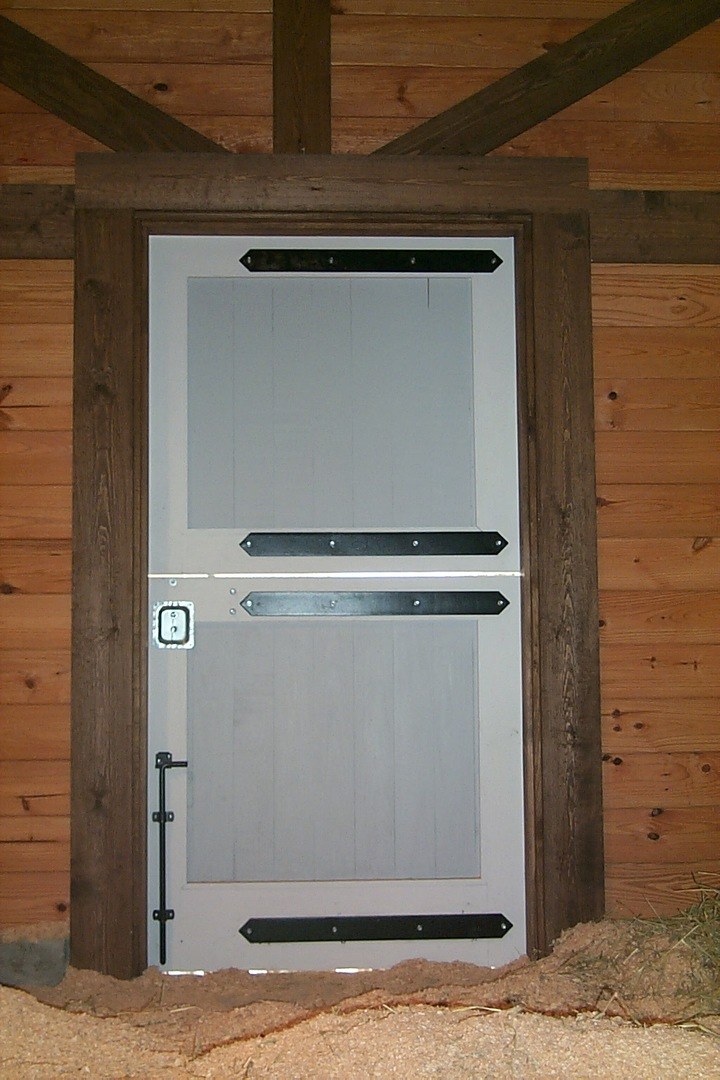

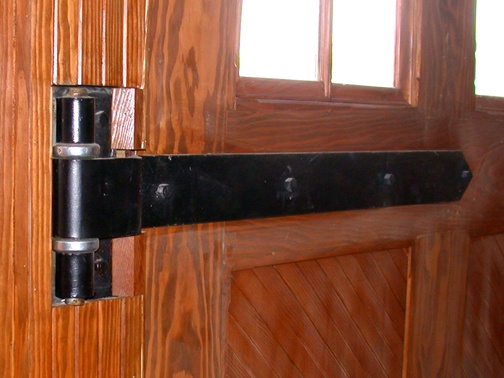

Strap hinges come in various thicknesses, usually 1/4”, 5/16”, 3/8”, or 1/2” for doors weighing between 400 lbs. ─ 5,000 lbs. or greater. The hinges can be mounted to the wall, or mounted directly to the frame. Jambs can consist of steel frame, hollow block, brick, concrete, or wood construction. (7’ – 24’ tall or higher and 50’ wide or wider). Standard strap hinges are used for manually-operated wood or metal doors that are surface mounted to wood, formed metal, or steel jamb frames.

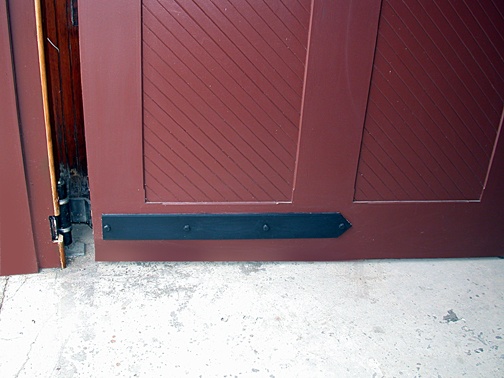

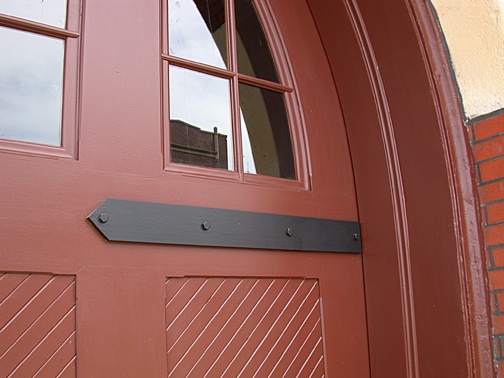

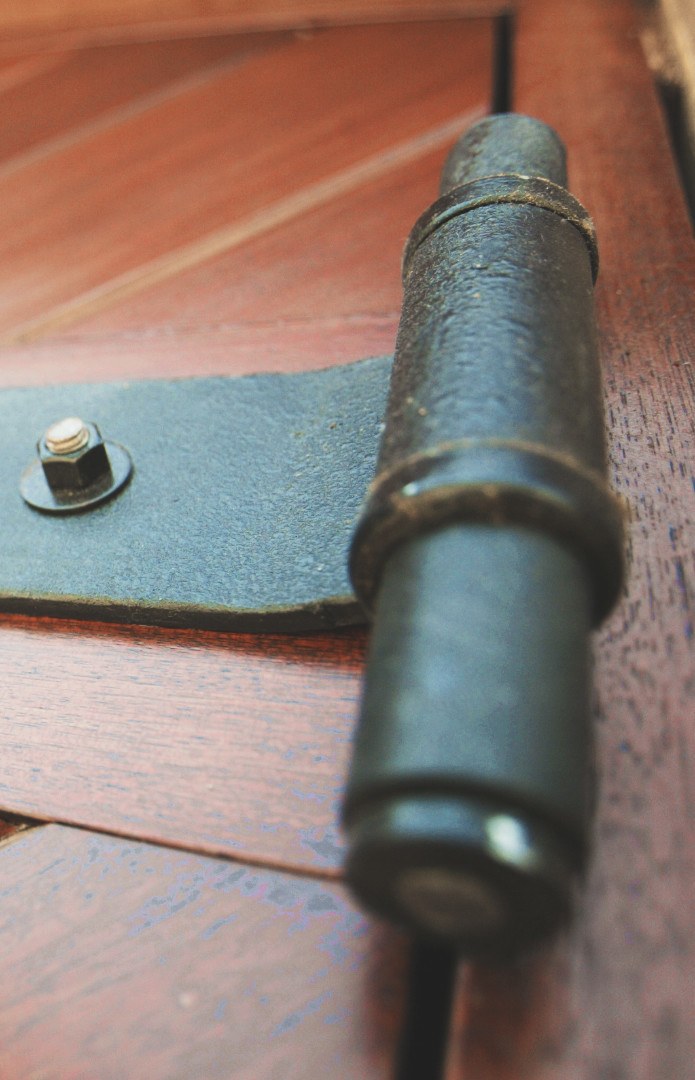

A variety of extremely high-quality options in strap design ensure your investment will last and function at peak performance for years to come. Disc bearing and ball bearing hinges are used on manually-operated doors, though ball bearing hinges are the preferred choice in high usage applications. In addition, back plates are available to add reinforcement to doors and prevent damage. Center hinge designs are available, and pintles can be removable or sealed in the hinge.

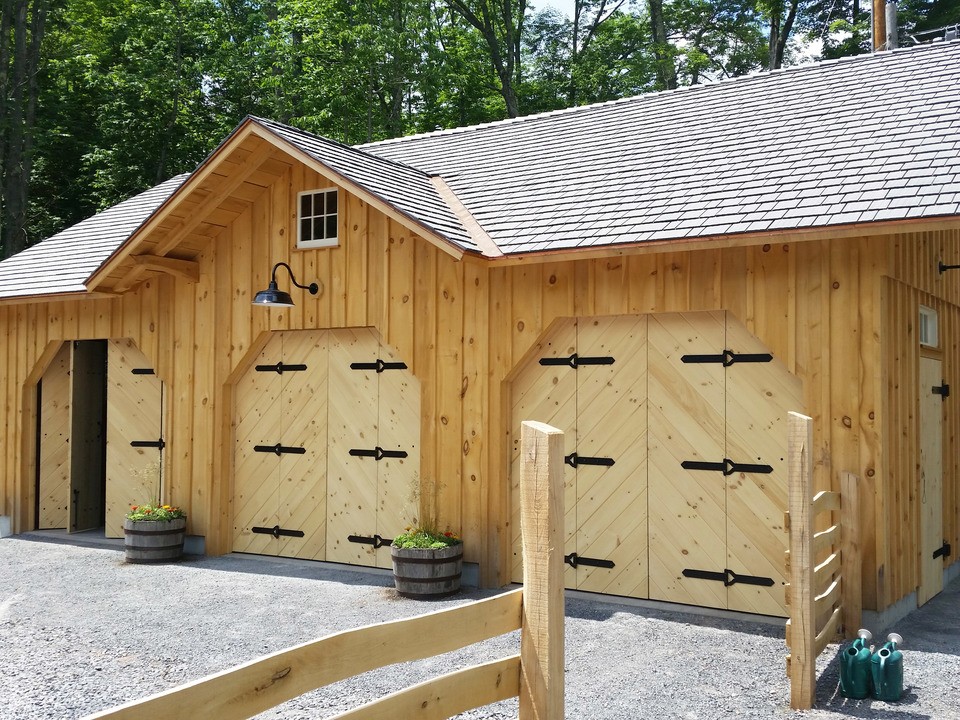

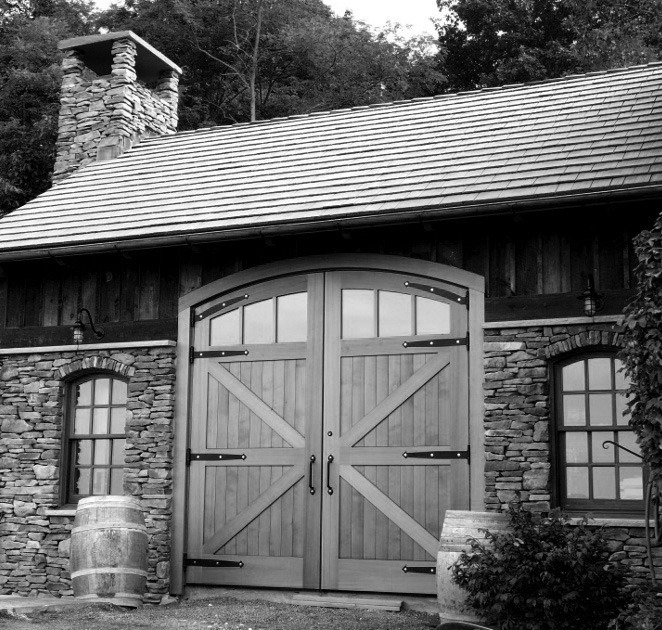

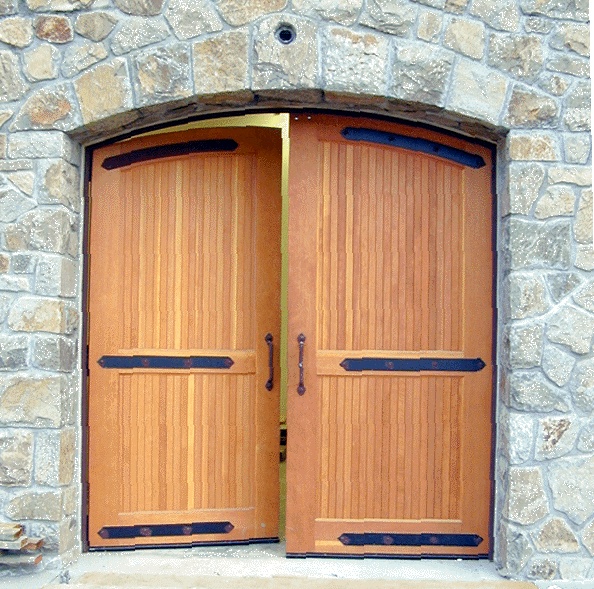

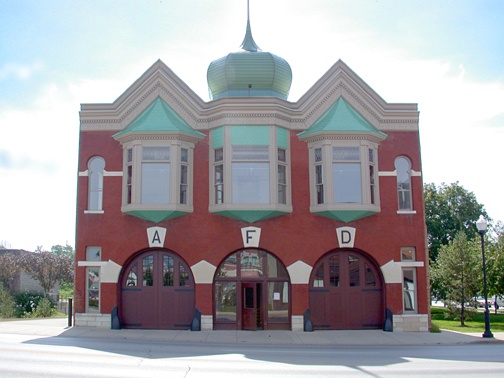

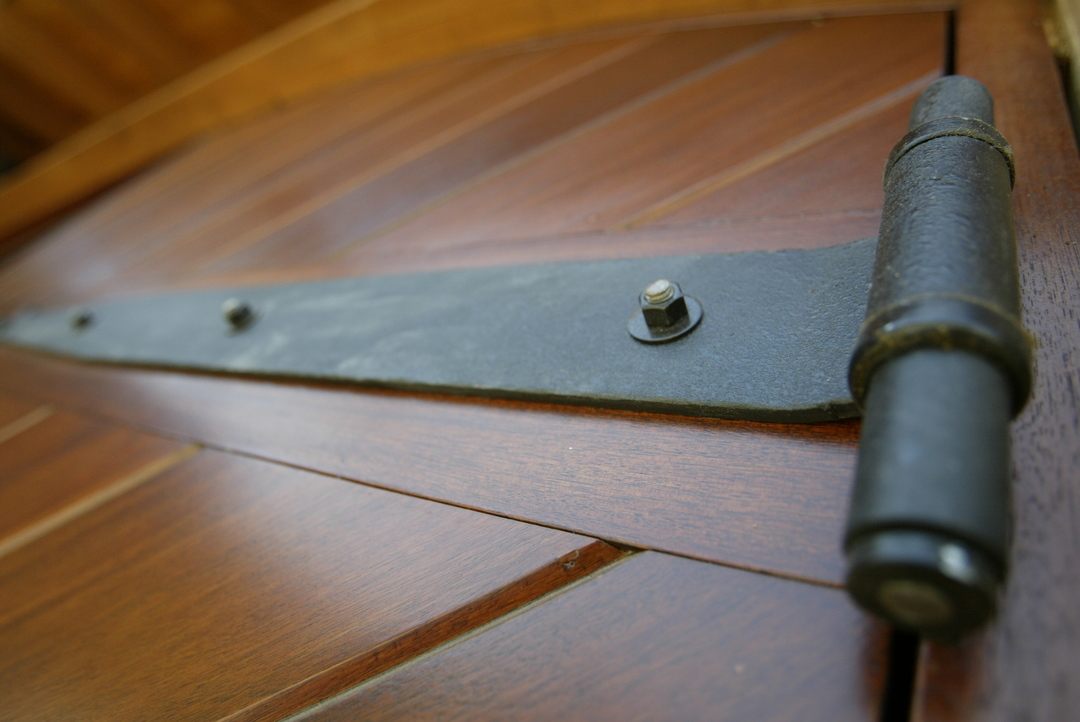

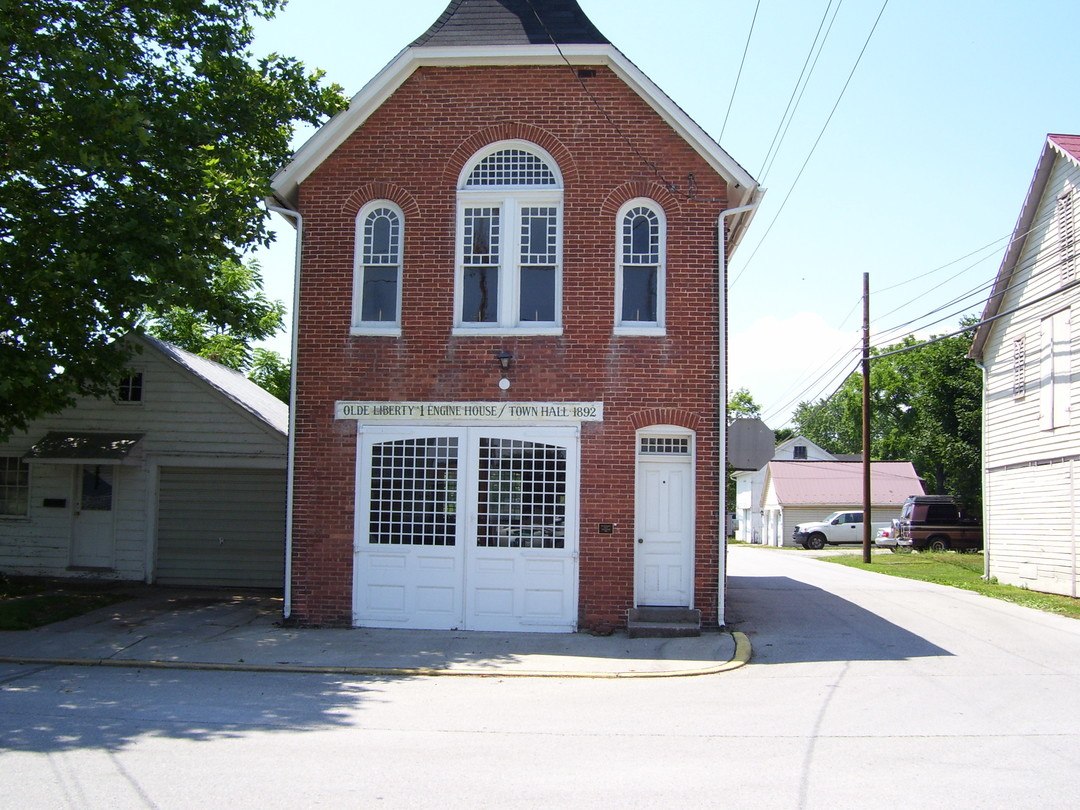

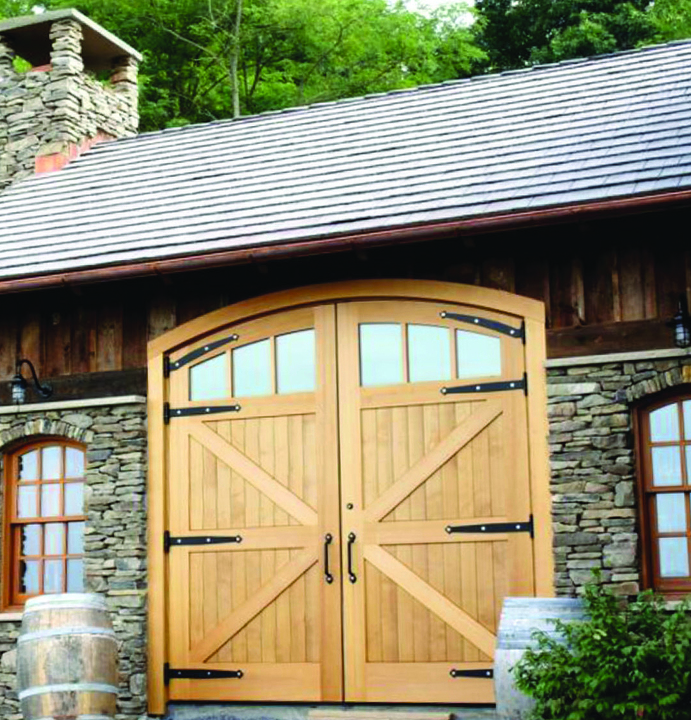

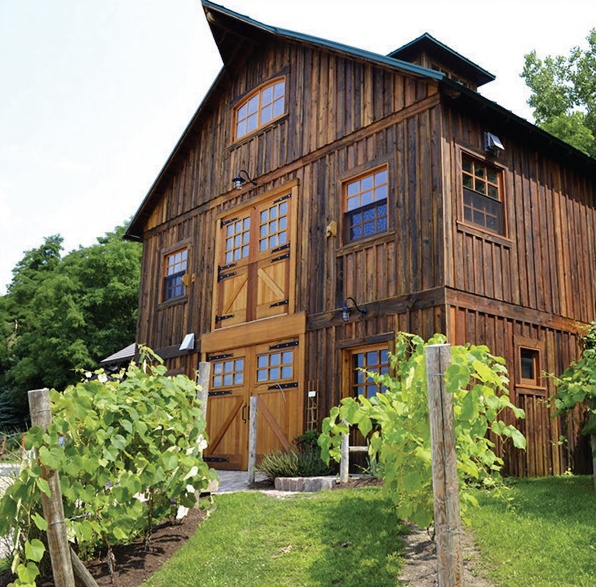

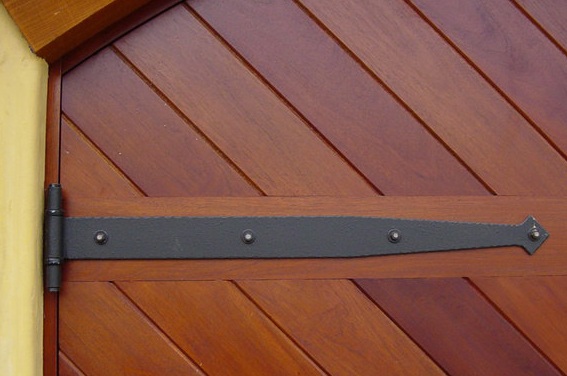

Traditionally designed decorative hinges function in exactly the same manner as standard strap hinges, but provide an enhanced aesthetic for historic renovation or building in the traditional style. Custom designs, such as the curved hinges, can be created so the radius of the hinge matches the radius of the door.
