The Industry Standard

In 1938, Richards-Wilcox invented the original enclosed track conveyor. Since then, R-W has continued to refine the product, which today still sets the industry standard for effective material handling equipment.

Using standard modular components constructed for long life, R-W Zig-Zag conveyors solve a variety of manufacturing problems. From simple, in-line finishing systems to complex storage and retrieval systems, Zig-Zag is an efficient and economical solution.

CAPACITY

75 lbs per load

Standard drive packages up to 750 lb. chain pull

Features

  • Straight Track, 3/16“ thick, the heaviest in the industry, stocked in 10‘lengths
  • Welding Fixtures
  • Horizontal Curves, 3/16“ thick, 90‘ flame hardened
  • Top Vertical Curves, 3/16“ thick, 90 degree, flame hardened
  • Bottom Vertical Curves, 3/16“ thick, 90 degree, flame hardened
  • Convevor Chain, 6“ pitch
  • Take-up Assembly
  • Inspection Section
  • Chain Oiler
  • Standard Drive Packages
  • Load Pendant Attachments

Applications

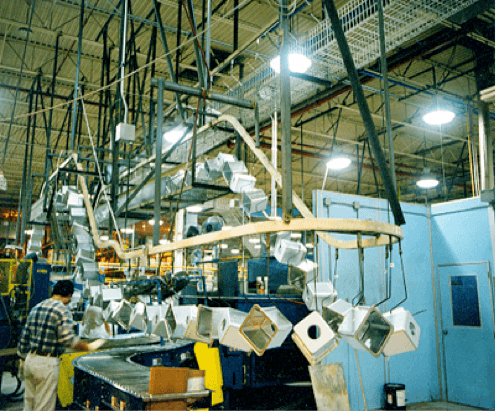

  • Paint Finishing Systems
  • WIP Buffer Systems
  • Investment Casting
  • Progressive Assembly
  • Trash Conveyors

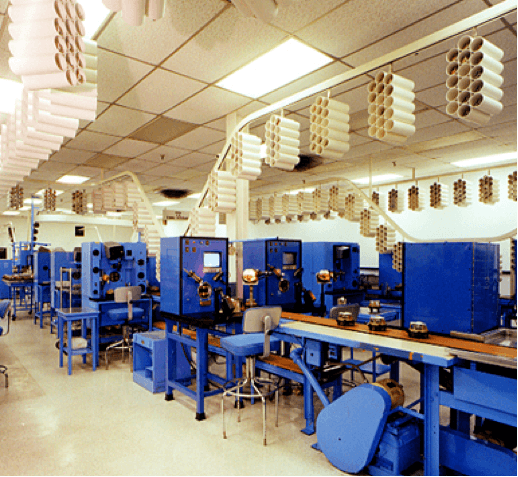

  • Tote Handling
  • Die Cast Rack Storage

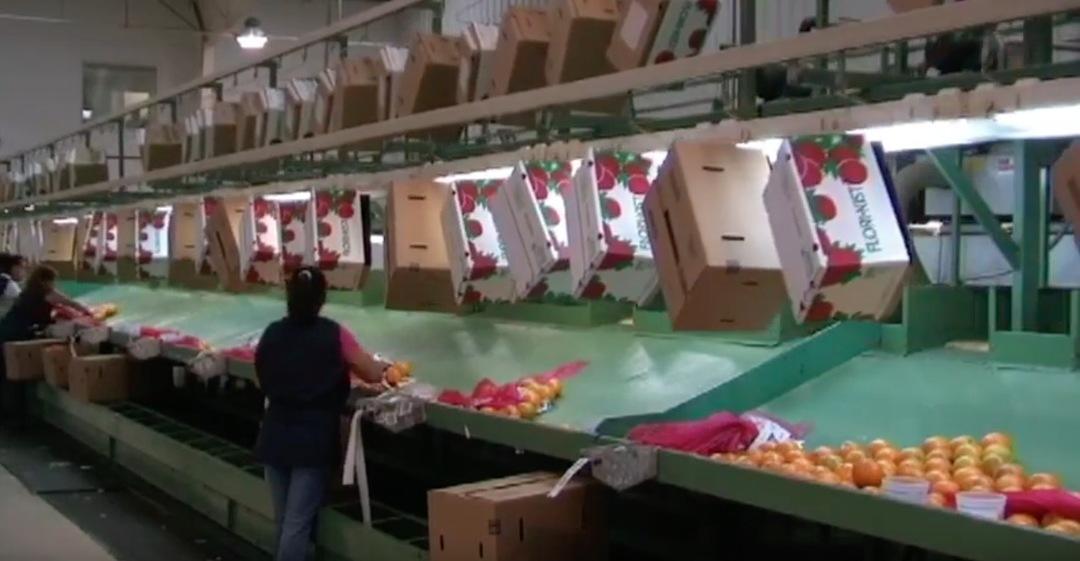

  • Empty Carton Return
  • Plating Rack Storage
  • Sliver Can Delivery
  • Robotic Interface

Benefits

Protects Product and Parts.

Zig-Zag’s enclosed track protects product from contamination that typically falls from open chain conveyors. Zig-Zag also protects the chain from airborne dirt, abrasives and solvents, prolonging chain life.

Simplifies Installation and Maintenance.

Zig-Zag is constructed of standard, modular components that guarantee easy installation, modification and maintenance. Standard components also guarantee quick accessibility through local stocking distributors.

Increases Throughput.

Zig-Zag chain has a pitch of 6″ and is shortest in the industry. This allows up to 33 percent more productivity. The pitch of our chain allows you to space load pendants closer with less wheel loading, allowing for more product throughput. This shorter pitch also allows for tighter radius horizontal curves.

Maximizes Floor Space.

Zig-Zag’s standard 1′-6″ horizontal and 2′-0″ vertical curves can make tight changes in direction and elevation, freeing up valuable floor space for other assembly and storage operations.

Facilitates Upgrades.

Zig-Zag was designed to meet manufacturers’ changing needs. As a result, it is the only overhead chain conveyor that can be upgraded to a power and free system utilizing all existing components.

Reduces Product Damage.

Because Zig-Zag can transport product anywhere, product handling and damage are kept to a minimum.

Vertical Wheels on 6″ Centers.

Spread the same amount of load over more wheels and reduce the point loading on track and reduce wear.
